Goal:

Design a Raspberry Pi enclosure with heat sinks and a fan for effective heat transfer.

Requirements:

• Must provide effective heat dissipation for the Raspberry Pi.
• Must allow for seamless snap-fit assembly.
• Must include multiple ventilation slots for adequate airflow.
• Must enable easy fan installation with minimal hardware.

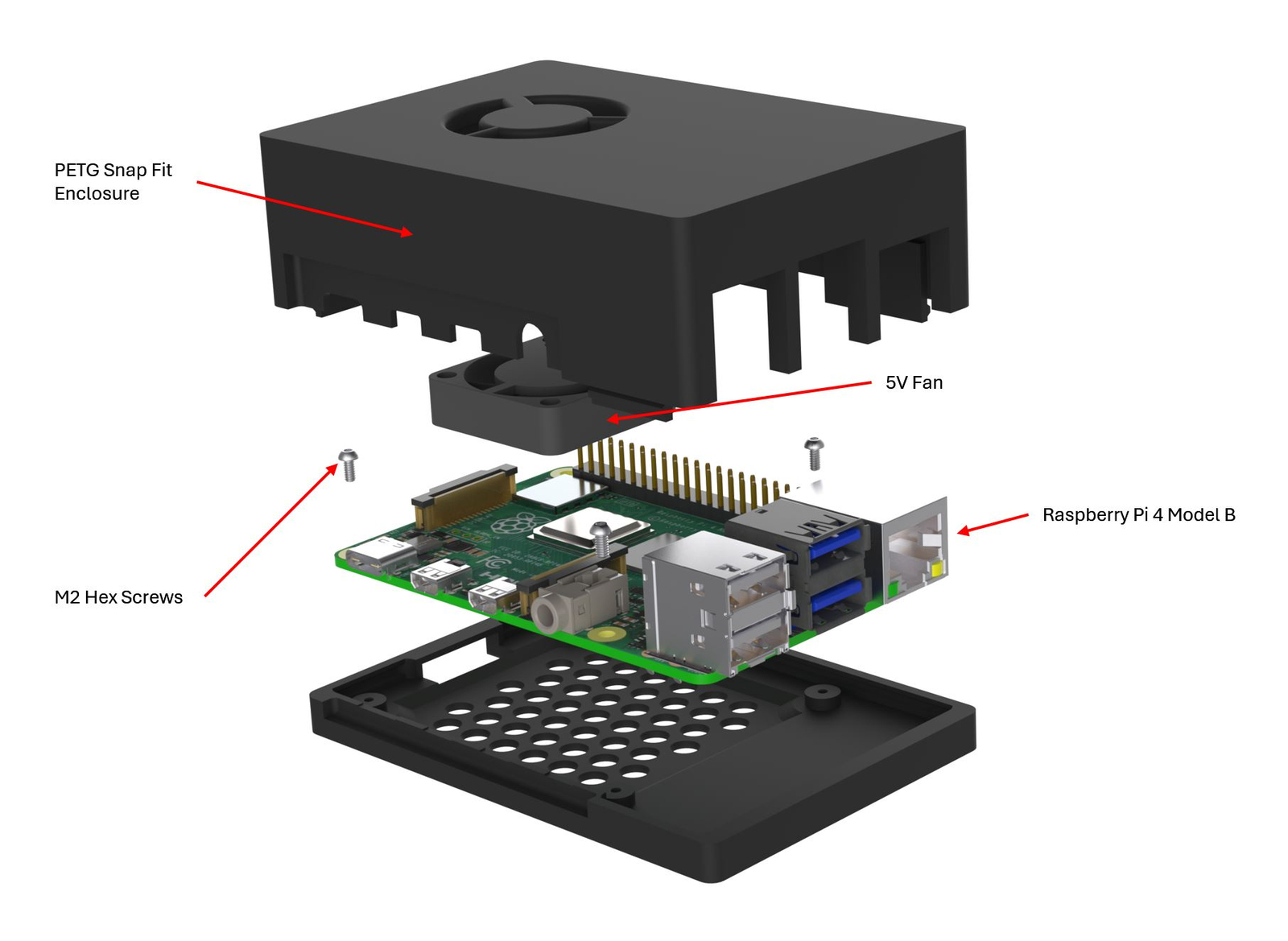

Design Highlights:

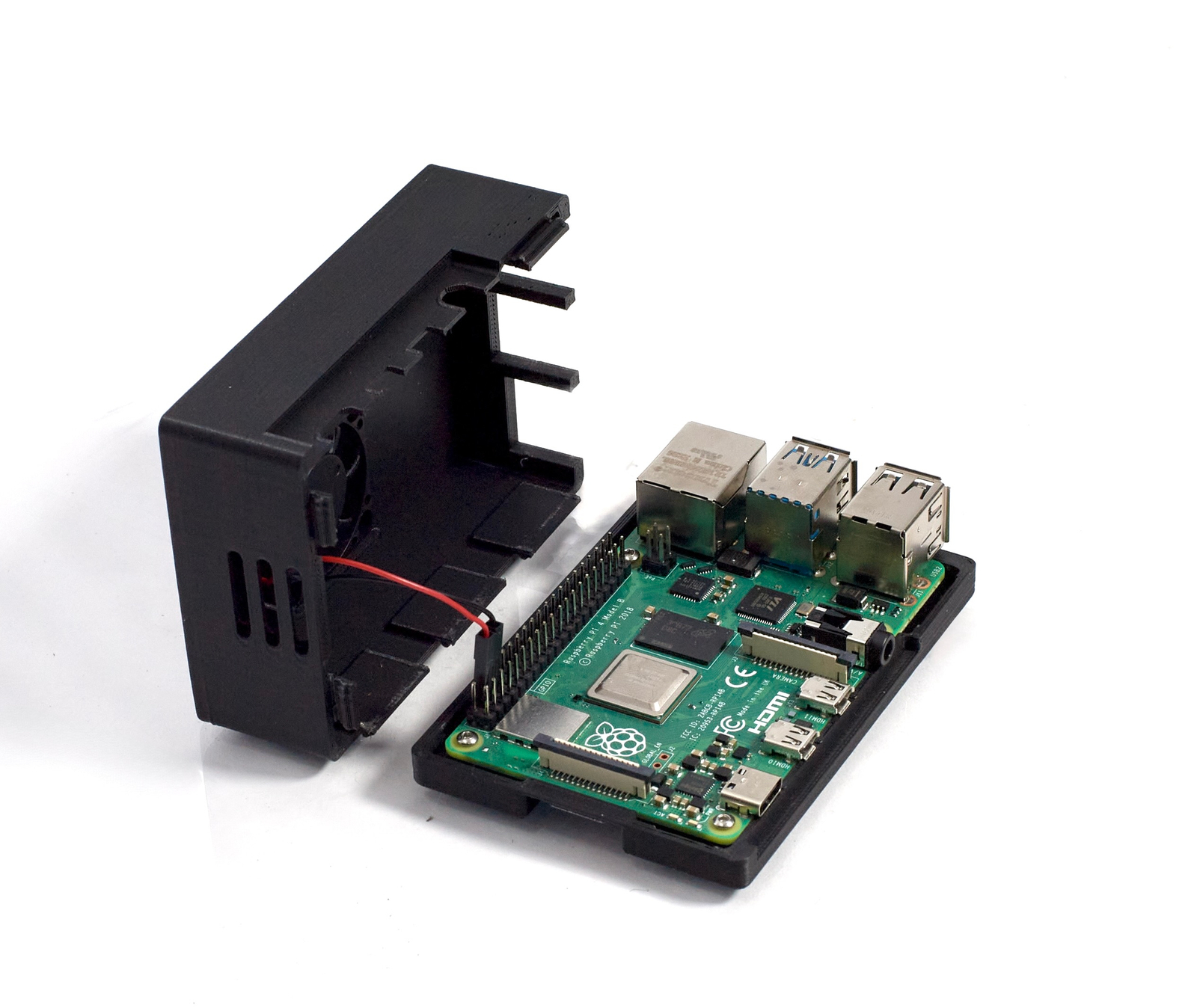

• Snap-fit design for tool-free assembly.
• Integrated heat sink and fan for efficient cooling.
• Multiple ventilation slots for optimal airflow.
• Sliding fan mount requiring minimal hardware.
• M2 screws securely fastening the board.

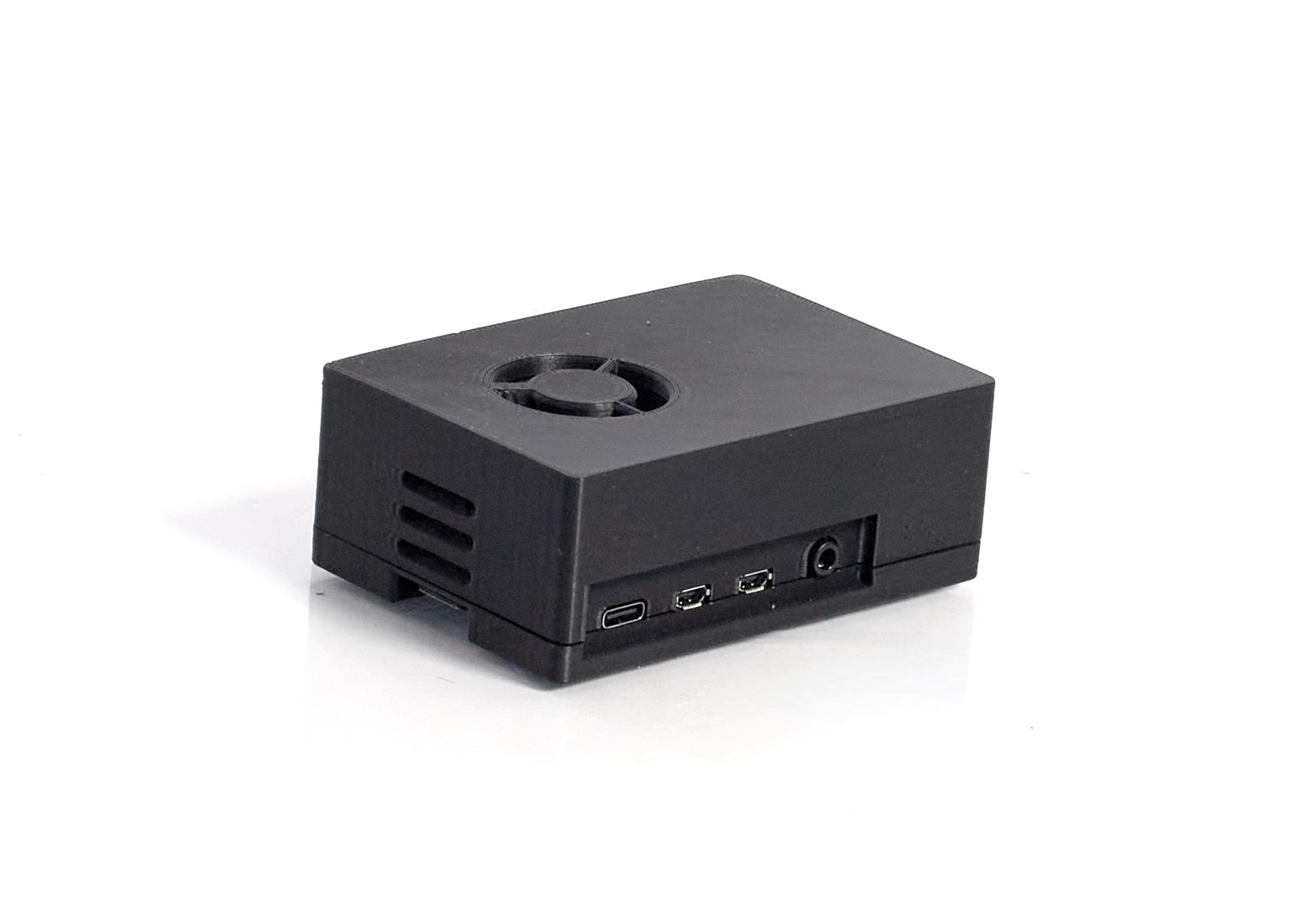

Outcome:

Created a robust and functional enclosure that enhances the Raspberry Pi’s longevity and performance by preventing overheating and minimizing external exposure. The design balances protection, cooling efficiency, and ease of assembly, making it an ideal solution for maintaining stable operation in various conditions.
