Summary:

  • Designed a faucet drip tray to catch spills while maintaining an aesthetic appearance.
  • Ensured the top was removable and the design conformed to the specific sink shape.
  • Took precise radial and length measurements to reverse engineer the sink for an optimal fit.

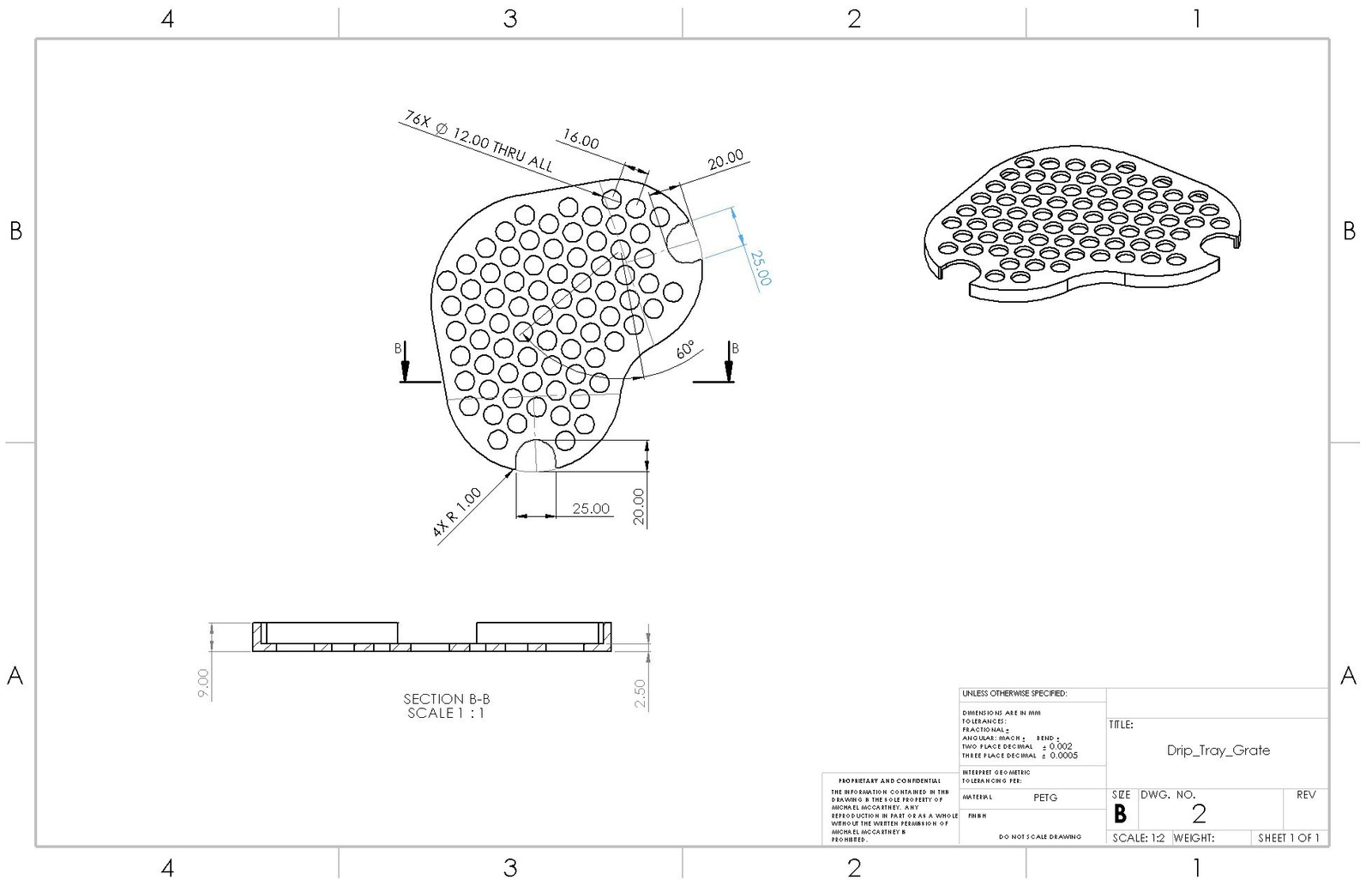

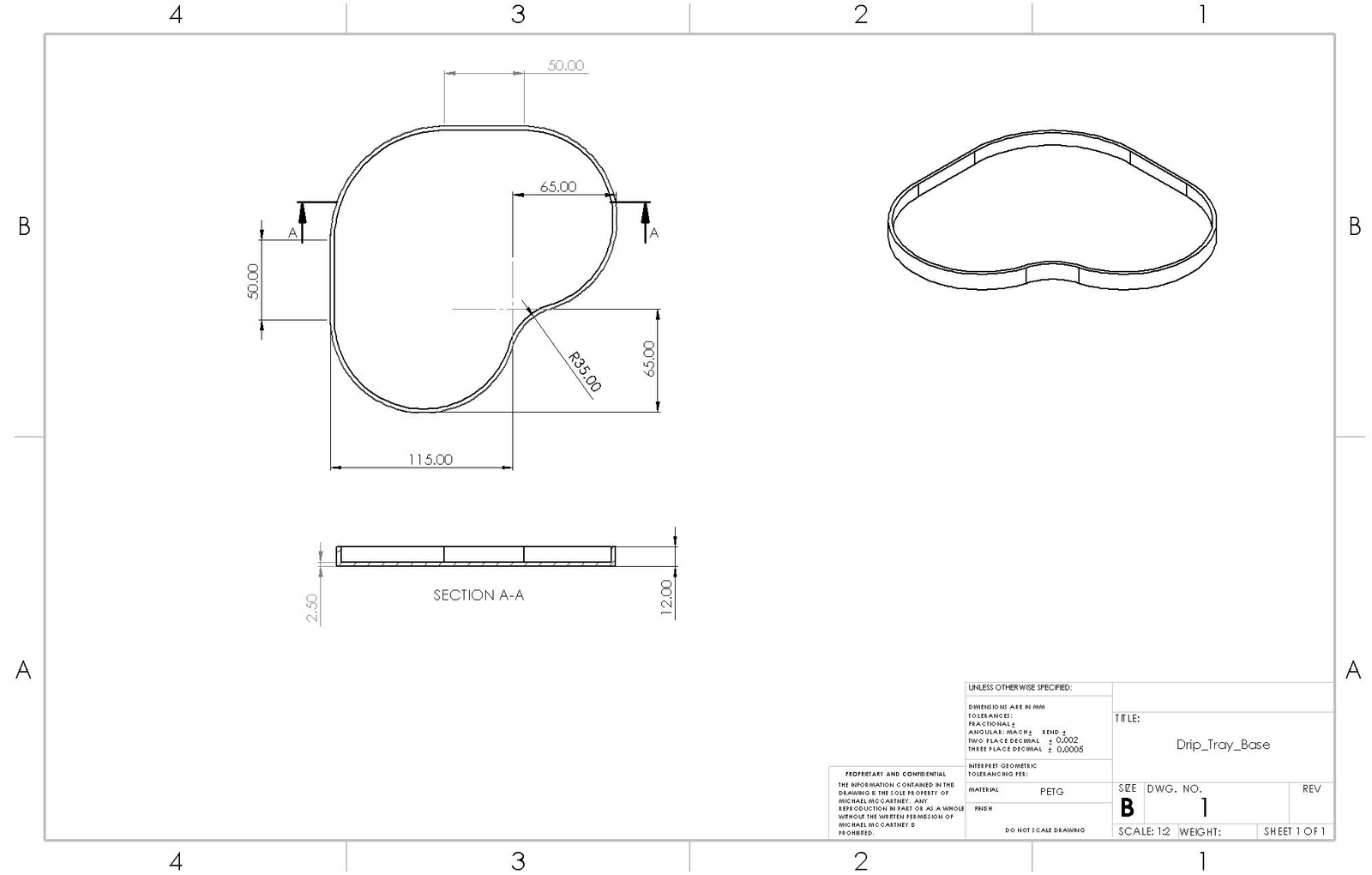

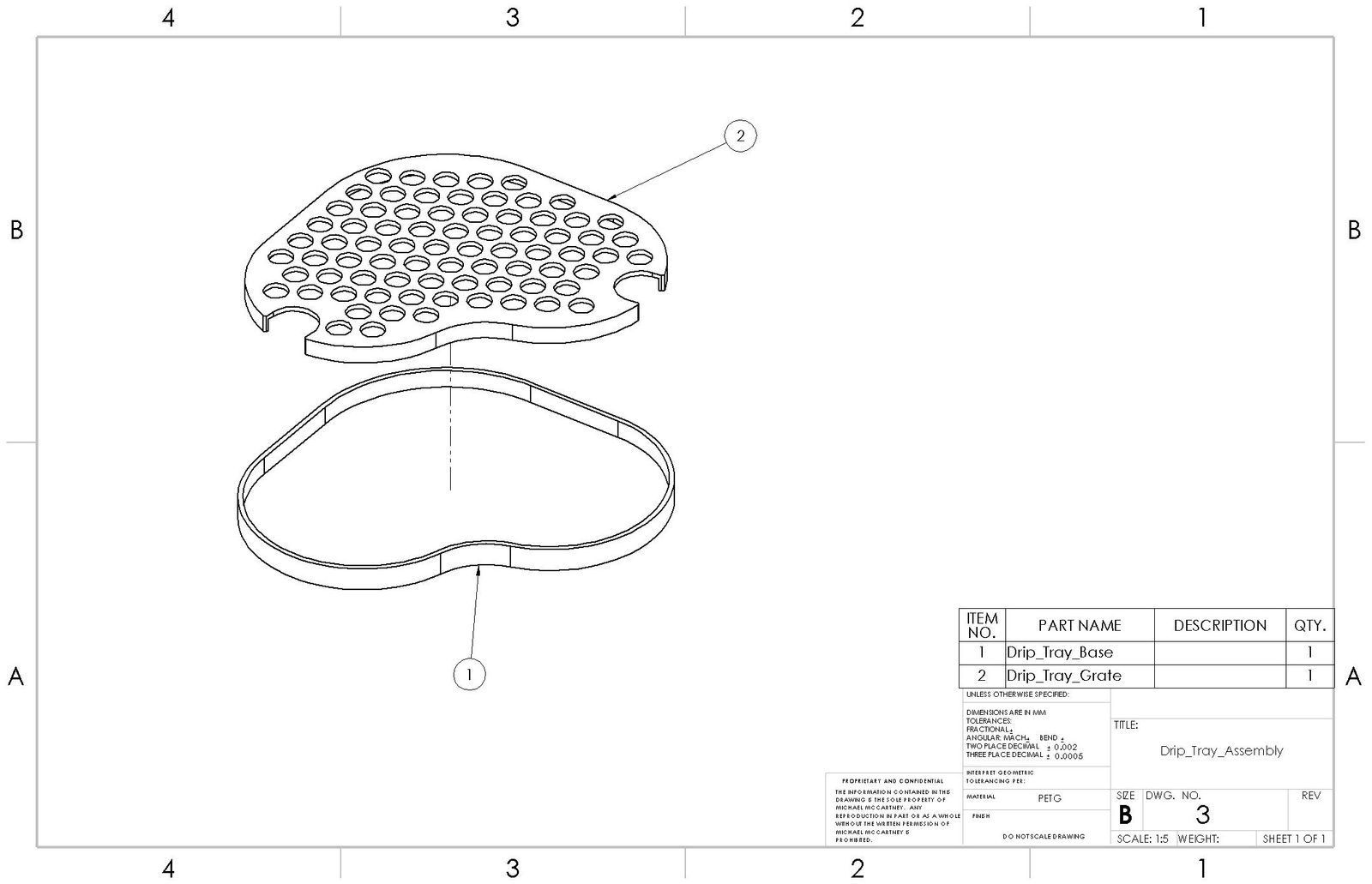

  • Designed the tray in SolidWorks with a 0.5–1 mm gap for easy grate removal.
  • 3D printed the tray using PETG, a durable thermoplastic with low material cost.

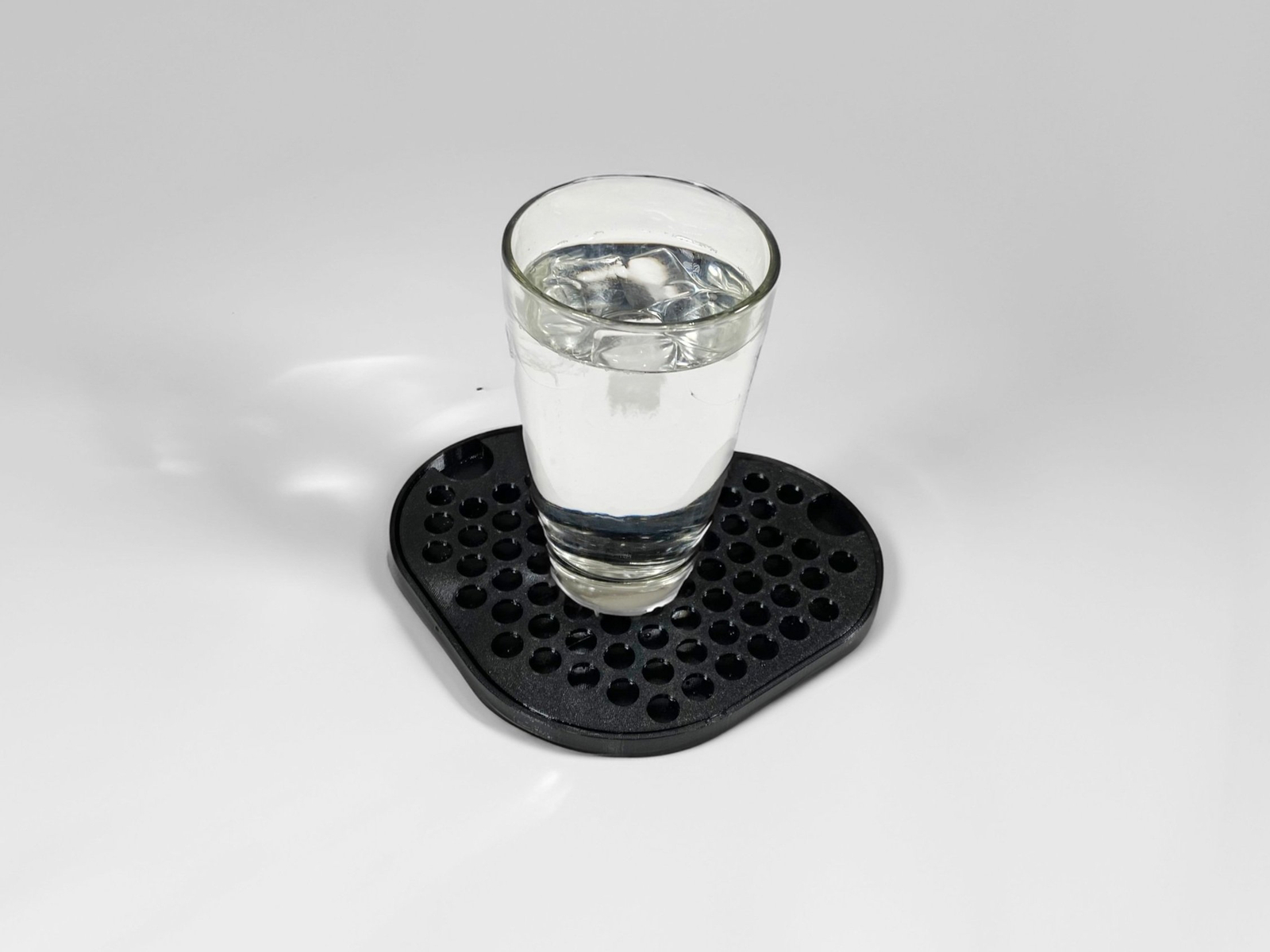

  • The final product is lightweight, functional, and visually appealing.
  • Successfully reduces faucet spillage while securely fitting around the sink.
plastic drip tray
